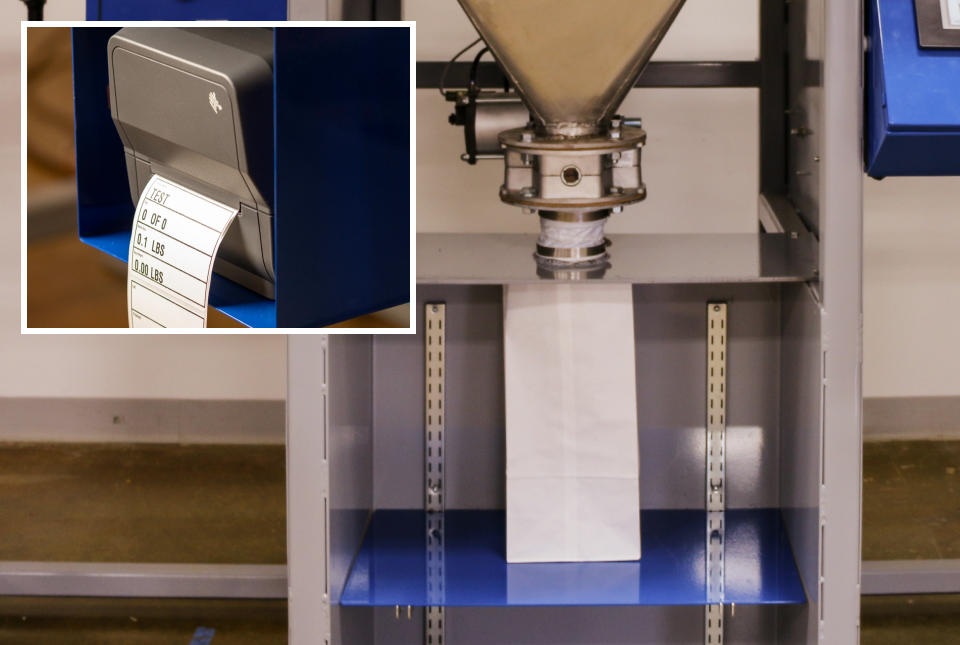

Bag Filling Systems
Systems that are easy to install, easy to operate and easy to maintain can be designed for both granular and powder pigment applications and matched to your specific containers.

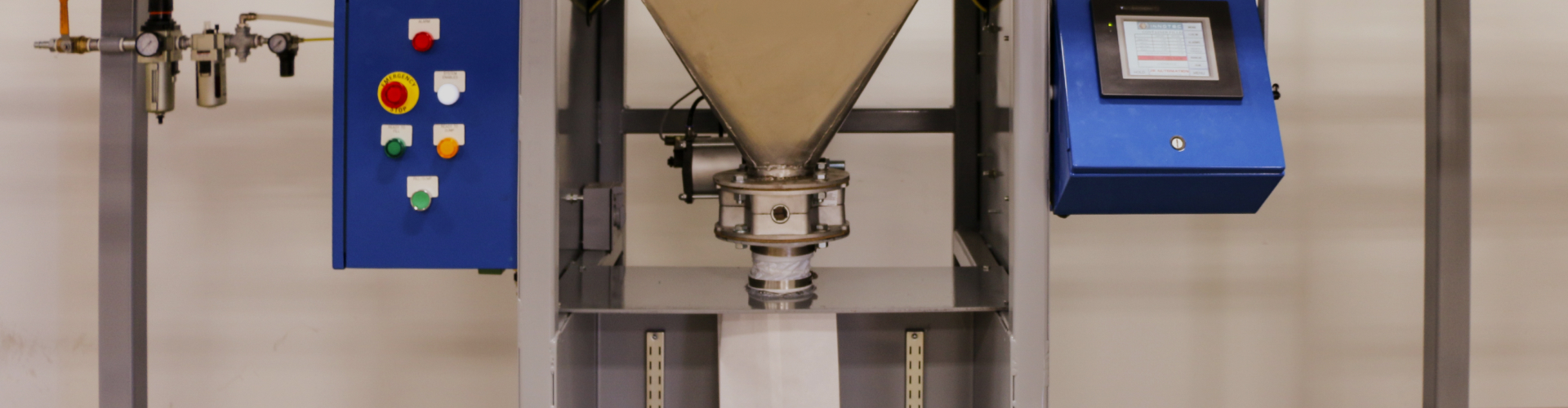

Control System
The dispenser control system incorporates an industrial rated PLC and touchscreen display. The pre-mounted, pre-wired control panel is designed to stand up to harsh plant environments.
Inventory Control
System totals the weight of all pigment dispensed in automatic mode, as well as amount remaining in the source super sacks. The system will alert operator when pigment available drops below an operator-set minimum. These total weights can be viewed, printed, or reset as desired.
Features
Up to Six Colors
Normally configured to draw from four pigment sources. Optional 5 or 6 source configuration is available.
Multiple Fill Rates
INDUSTEC’s unique metering system combines fast fill rates with very accurate results. The bulk of the material is added in fast fill. As the fill target is approached, the fill rate is reduced so that the last small amount of pigment is added very precisely.
Access Codes
Owner selectable access codes are available, if desired, to protect sensitive areas of dispenser functions.

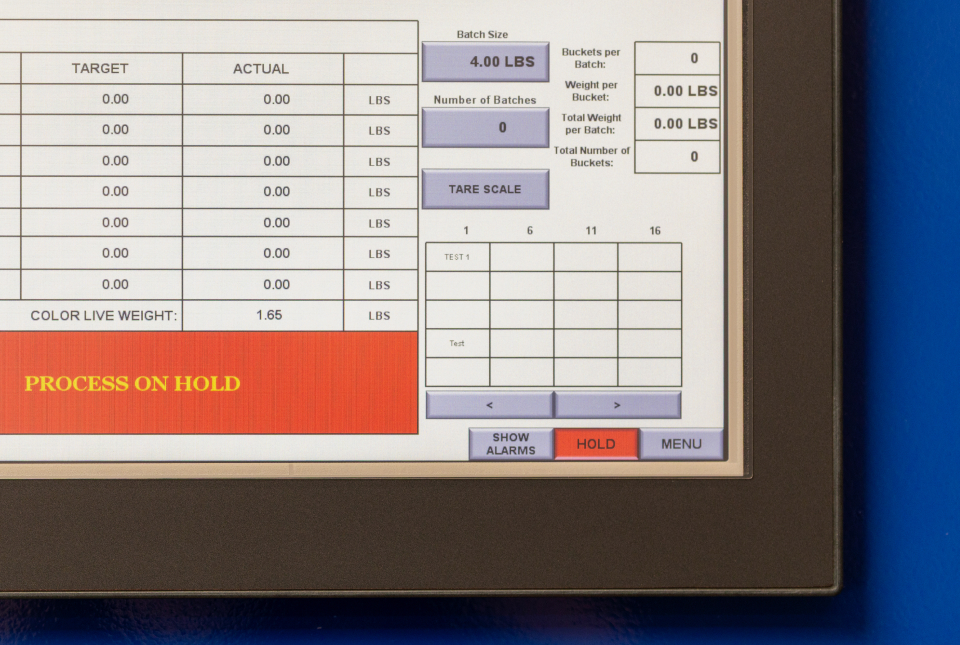

Touchscreen Display
All system functions and parameters are accessed by simply touching the NEMA 4 rated touchscreen display. This display is protected from pigment, dirt and screen wear by an inexpensive, easily replaceable screen shield. The touchscreen display can be mounted remotely in an operator console.
Standard Specifications
| WEIGHT RESOLUTION | 0.05 lbs or Better on Standard Systems |
| CONTROLS SYSTEM PLC | Allen-Bradley or Automation Direct |
| CONTROL SYSTEMS DISPLAY | Color Touchscreen |
| NUMBER OF FORMULAS | 1,000 or More |
| FORMULA NAMES | Customer Defined |
| COLOR NAMES | Customer Defined |
| INVENTORY CONTROL | Amount Used (Per Color), Amount Available (Per Color), Amount Available Warning |
| PRINTOUTS | Batch Report, Batch Error Report, Usage Report, System Set Up Report, Formula Printout |
| ELECTRICAL | 120 VAC, 50/60 Hz, 15A |
| ELECTRICAL PROTECTION | Circuit Breakers |
