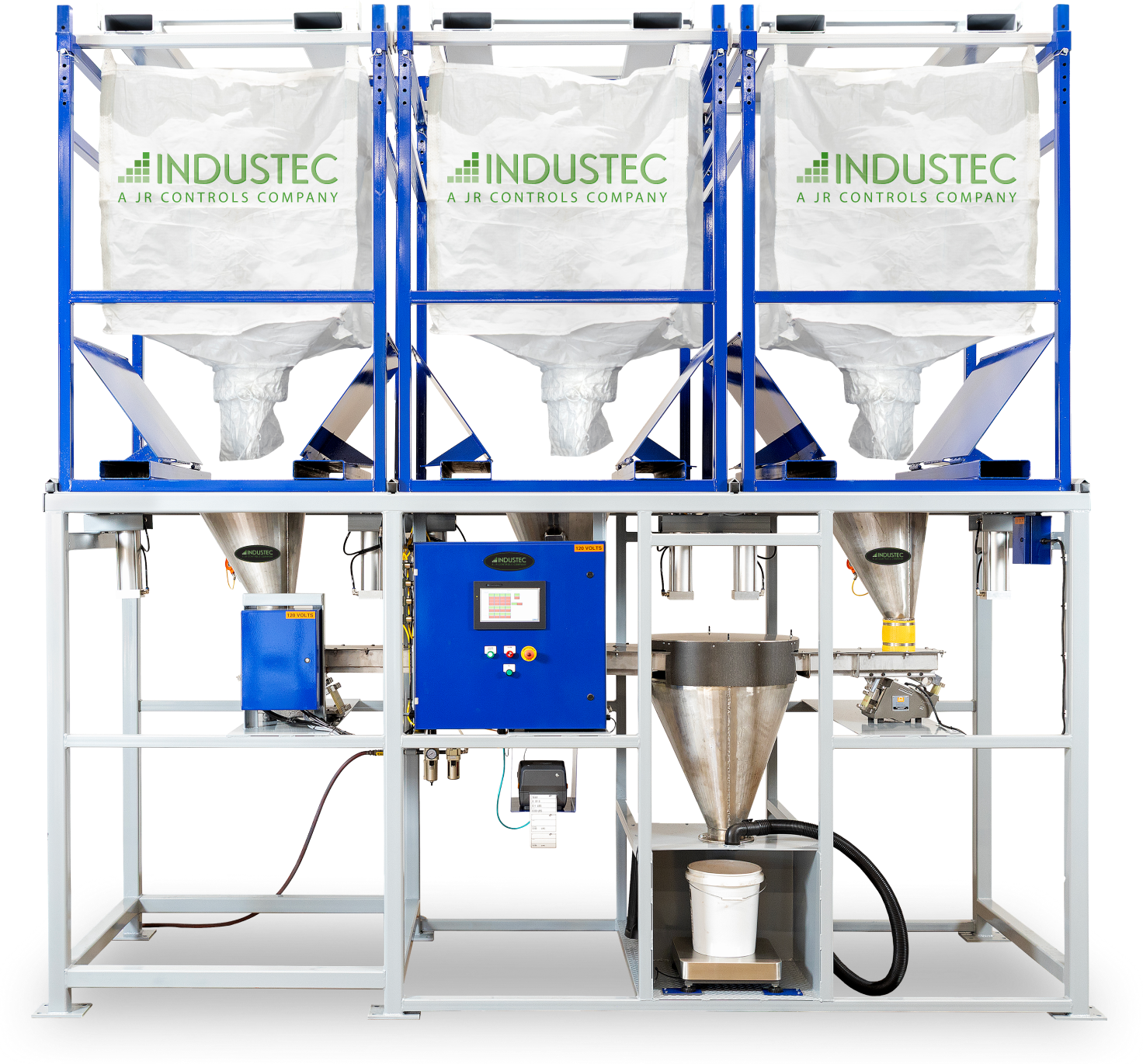

Powder Pigment Dispensers
Designed for quality, accuracy, and ease of use, the INDUSTEC powder dispensing system helps automate production for consistent batches and color accuracy.
KEY ADVANTAGES
- Multi-speed feeding for improved accuracy
- Ability to customize hardware
- Manufactured with non-proprietary parts for easy sourcing and replacement
- Machine programming done in house
- Remote technical support standard
- Fully assembled and tested prior to shipment
- Modular construction simplifies installation
- Ability to modify size/dimensions of machine to fit low clearance or limited space
What makes INDUSTEC powder pigment dispensers the best choice for your facility?

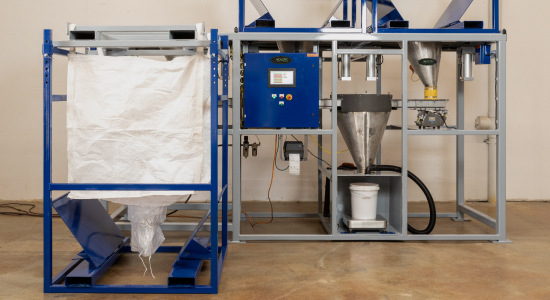

Easy to Install
Shipped fully-assembled, wired, and tested from our factory, the system requires only electrical, and compressed air with minimal on-site assembly.

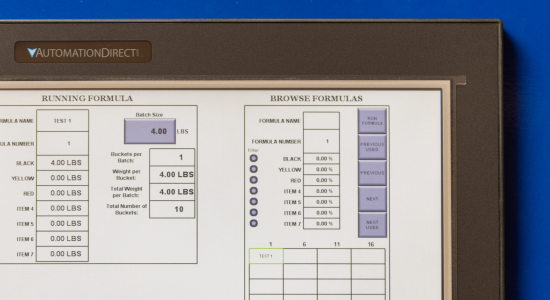

Easy to Operate
From initial setup and formula entry to automatic run during production, the Touch Screen interface has been programmed to make it easy for production personnel to use the system and monitor performance.

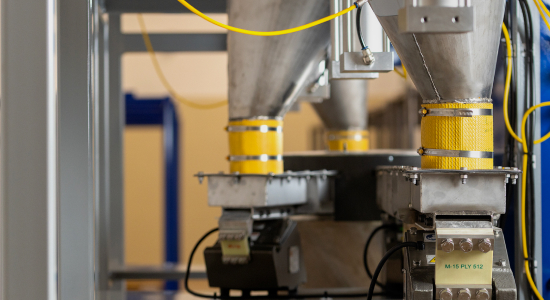

Easy to Maintain
Down time is very expensive so our system has been designed to require a minimal amount of maintenance. When it is required, our design makes it as easy as possible to perform.
1. The machines do not feature many proprietary parts.
2. The controllers, valves and such are all made from standard components readily available in the aftermarket.
3. If an emergency should occur we stock a full line of parts ready for next day delivery to your plant and can provide remote access support. No on-site field service required.

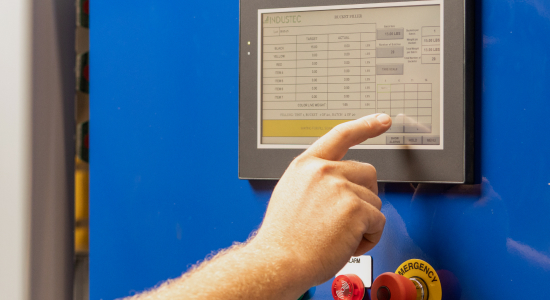

Easy to Customize
Our standard dispenser, available in several configurations, will adequately meet the requirements of most applications. If not, we are able to modify our system to meet your specific needs.
Custom Hardware
INDUSTEC can customize your system to suit a wide variety of special operations. For instance, large chambers can be used for high volume operations while small chambers can be employed in operations requiring more accuracy.
Custom Programming
Our in-house controls team allows us to customize the functionality of machines for specific client needs.
Features
Up to Six Colors
Normally configured to draw from four pigment sources. Optional 5 or 6 source configuration is available.

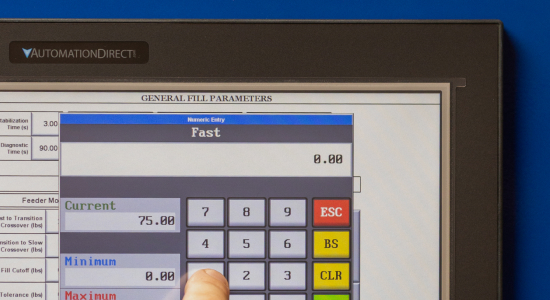

Multiple Fill Rates
INDUSTEC’s unique metering system combines fast fill rates with very accurate results. The bulk of the material is added in fast fill. As the fill target is approached, the fill rate is reduced so that the last small amount of pigment is added very precisely.

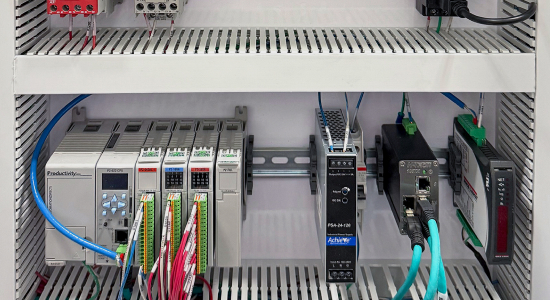

Control System
The dispenser control system incorporates an industrial rated PLC and touchscreen display. The pre-mounted, pre-wired control panel is designed to stand up to harsh plant environments.

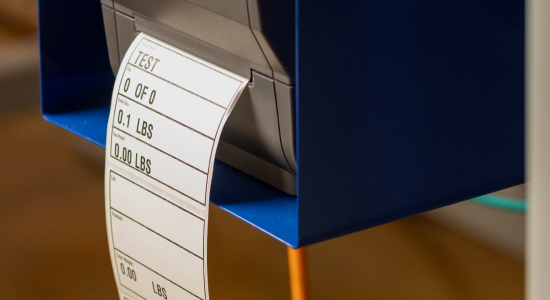

Inventory Control
System totals the weight of all pigment dispensed in automatic mode, as well as amount remaining in the source super sacks. The system will alert operator when pigment available drops below an operator-set minimum. These total weights can be viewed, printed, or reset as desired.

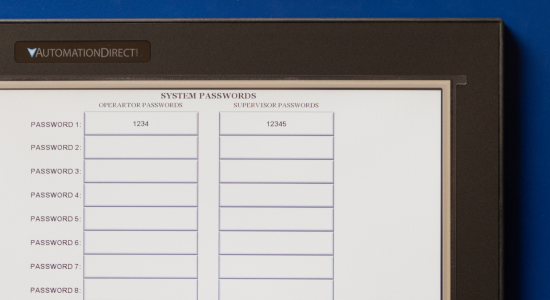

Access Codes
Owner selectable access codes are available, if desired, to protect sensitive areas of dispenser functions.

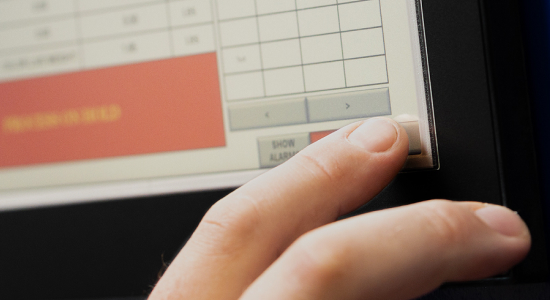

Touchscreen Display
All system functions and parameters are accessed by simply touching the NEMA 4 rated touchscreen display. This display is protected from pigment, dirt and screen wear by an inexpensive, easily replaceable screen shield. The touchscreen display can be mounted remotely in an operator console.
Specifications
| Features | |
|---|---|
| WEIGHT RESOLUTION | 0.02 lbs. or better |
| NUMBER OF FORMULAS | 1,000 |
| FORMULA NAMES | Customer defined |
| NUMBER OF BASE COLORS | 4 standard – up to 8 colors optional |
| COLOR NAMES | Customer defined |
| BATCH CAPACITY | 0.10 lbs. to 50 lbs. |
| SPACE REQUIREMENTS | 14’ high, 18’ wide, 48” deep (Standard 4-color system) |
| Control System | |
|---|---|
| CONTROL | Automatic or manual |
| PLC | Allen-Bradley or Automation Direct |
| DISPLAY | Color touchscreen |
| ALARMS | Audible and visual Local and remote |
| INVENTORY CONTROLS | Amount used (per color) Amount available (per color) Amount available warning |
| PRINTOUTS | Batch report Batch error report Usage report System set-up report Formula printout |
| Power and Air | |
|---|---|
| ELECTRICAL | 120VAC, 50/60 Hz, 15a |
| ELECTRICAL PROTECTION | Circuit breakers |
| AIR REQUIREMENTS | Approximately 15cfm @ 100 PSI Clean, dry air |
